02 Jul Bench Top Work Chambers with Built-In Dust Collection
Work chamber contains the spent abrasive powder, makes the object to be processed clearly visible, and protects the operator. Crystal Mark offers work chambers with different sizes, each with required air flow and built-in dust collector.
TURBO-Max™, TURBO-Station™
Crystal Mark Turbo MAX work chamber

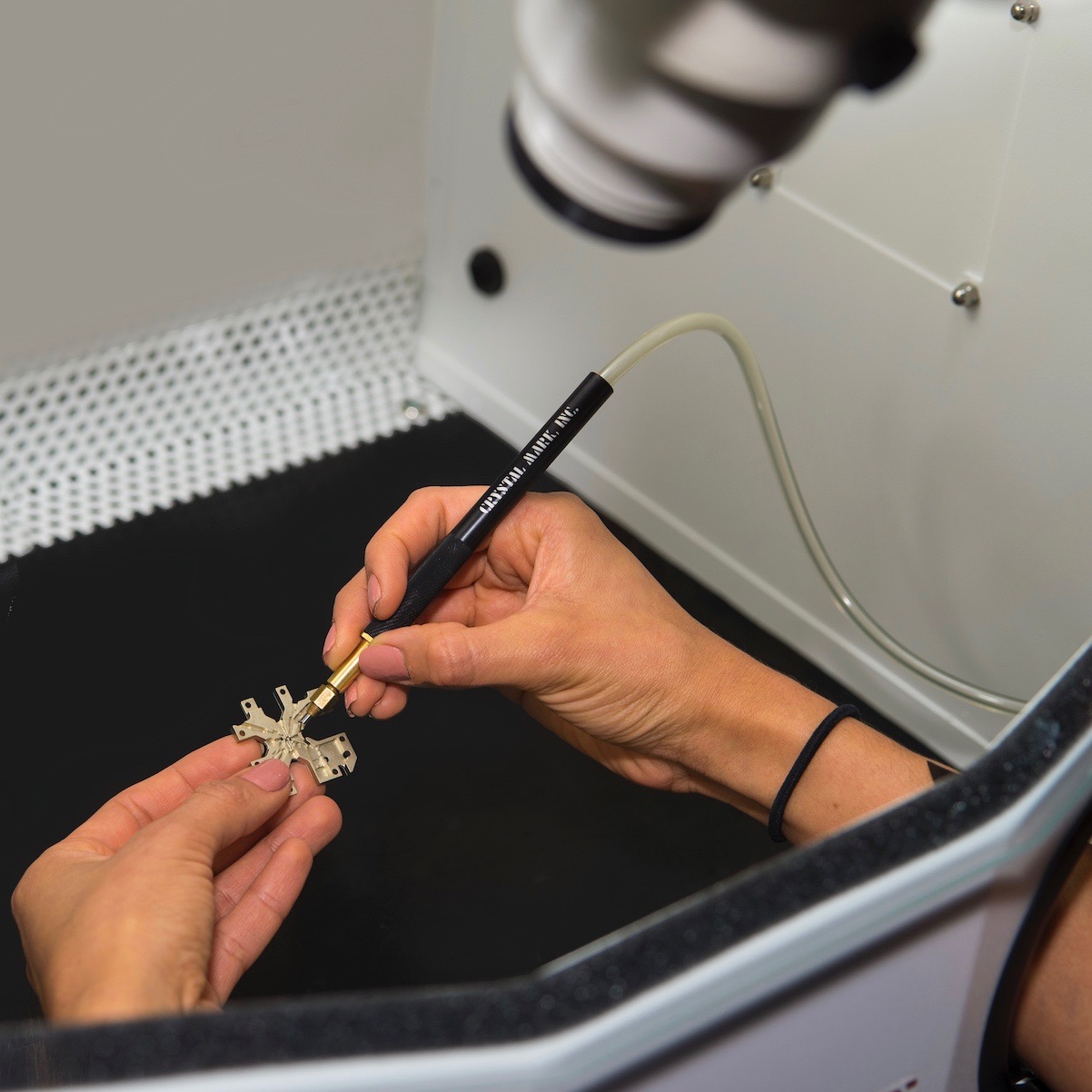

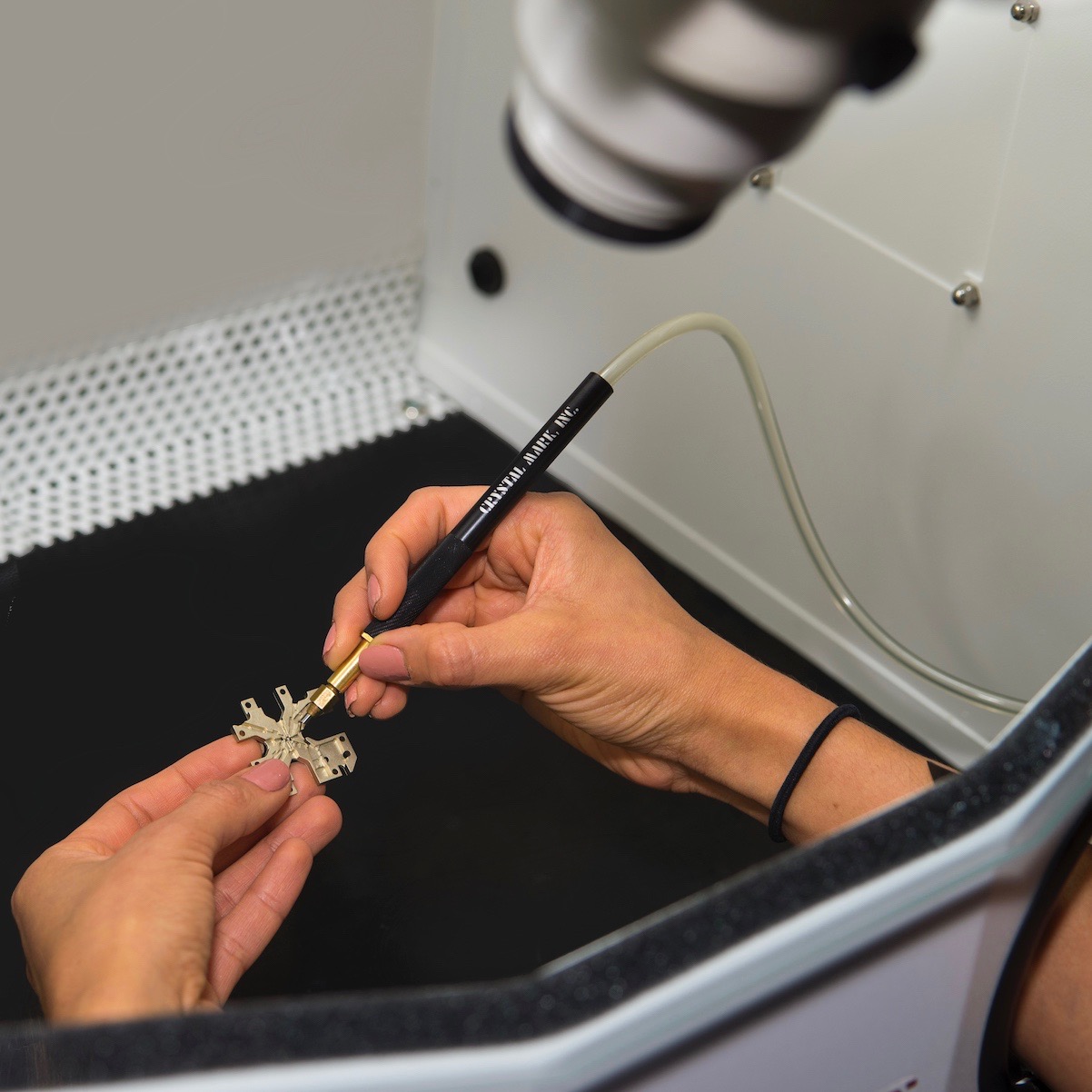

Illuminated Work Area | Tempered Glass, Microscope

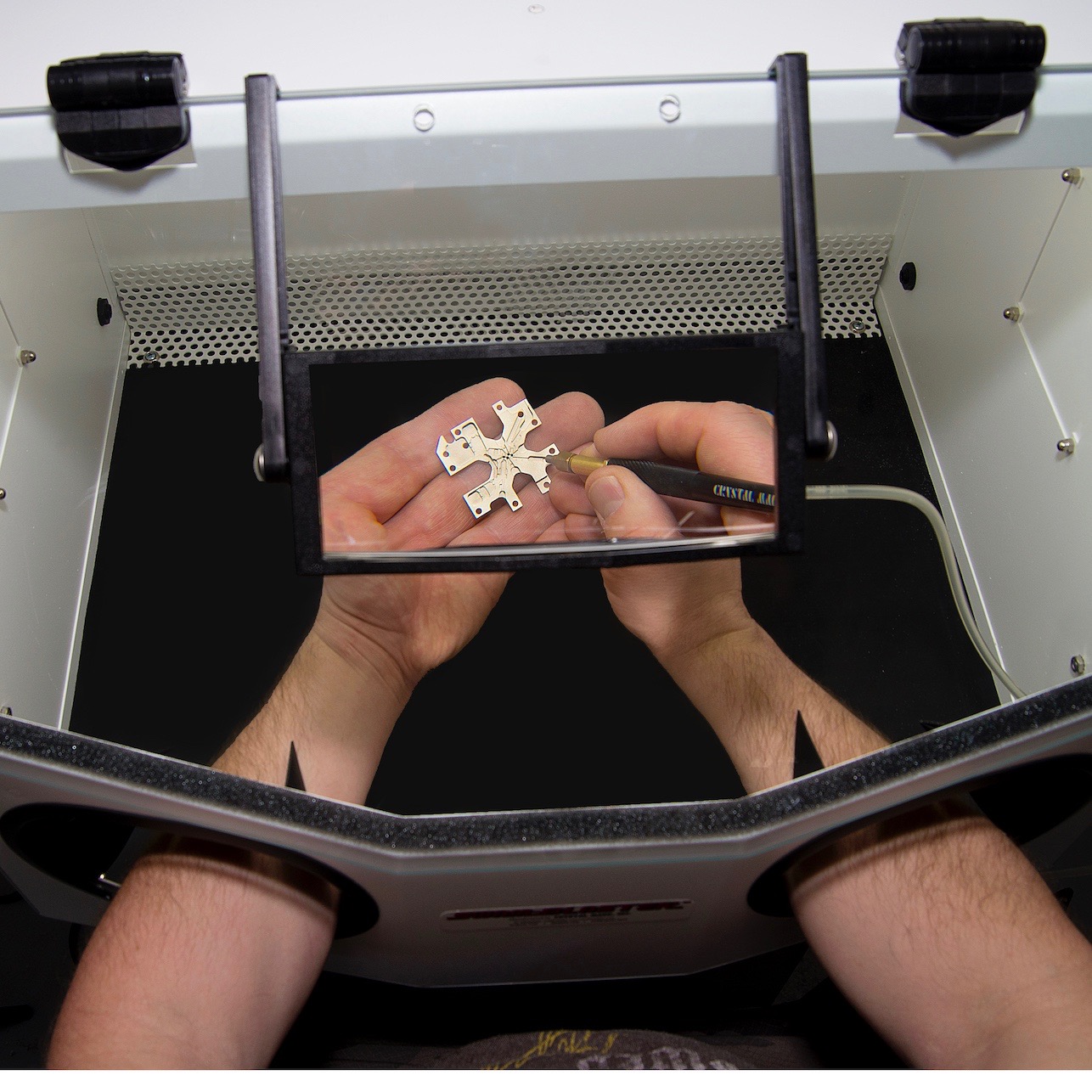

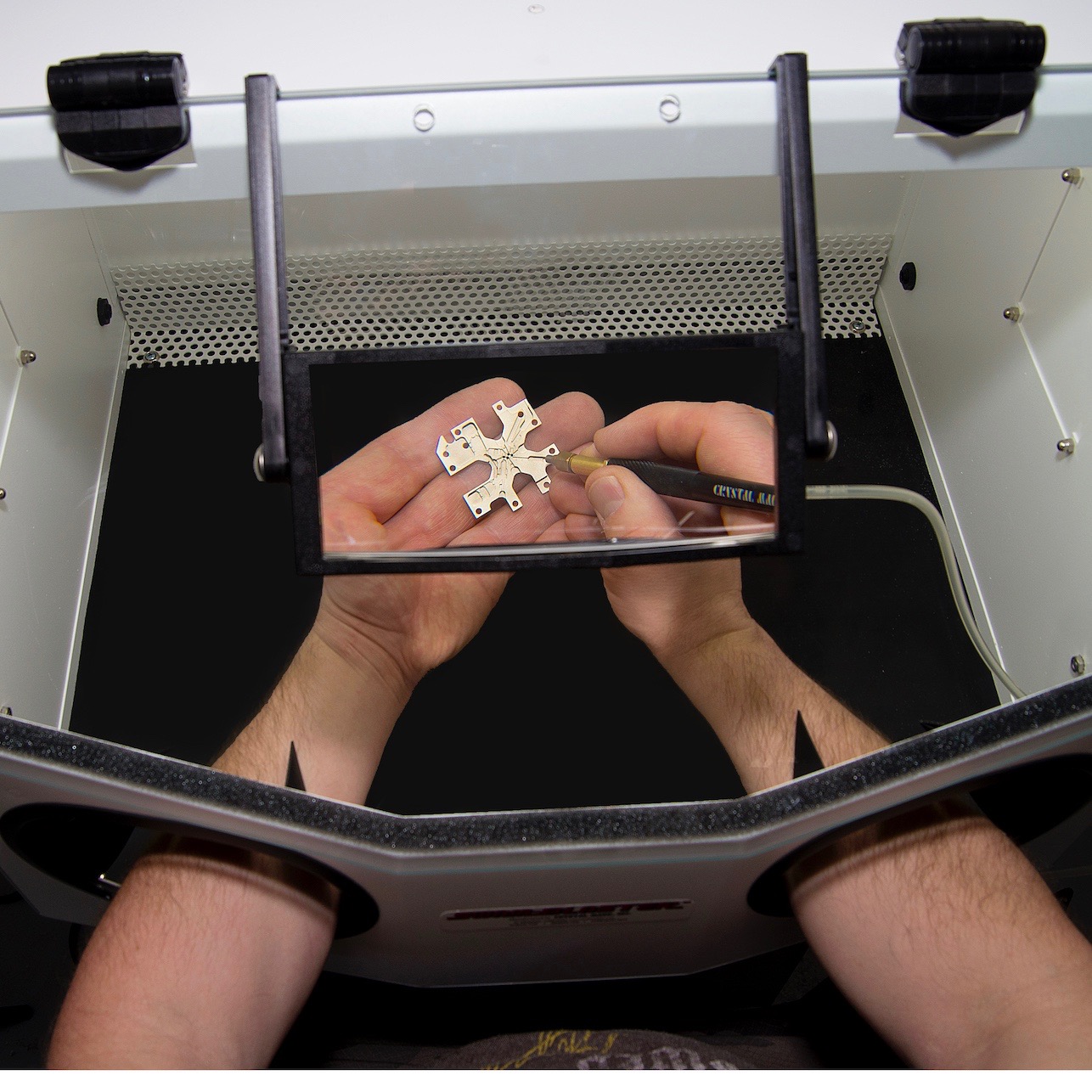

Turbo Station Work Chamber | Magnifying Glass Enhances Work Experience
MV/EV Series SWAM Blaster + TURBO-Max™ Work Chamber

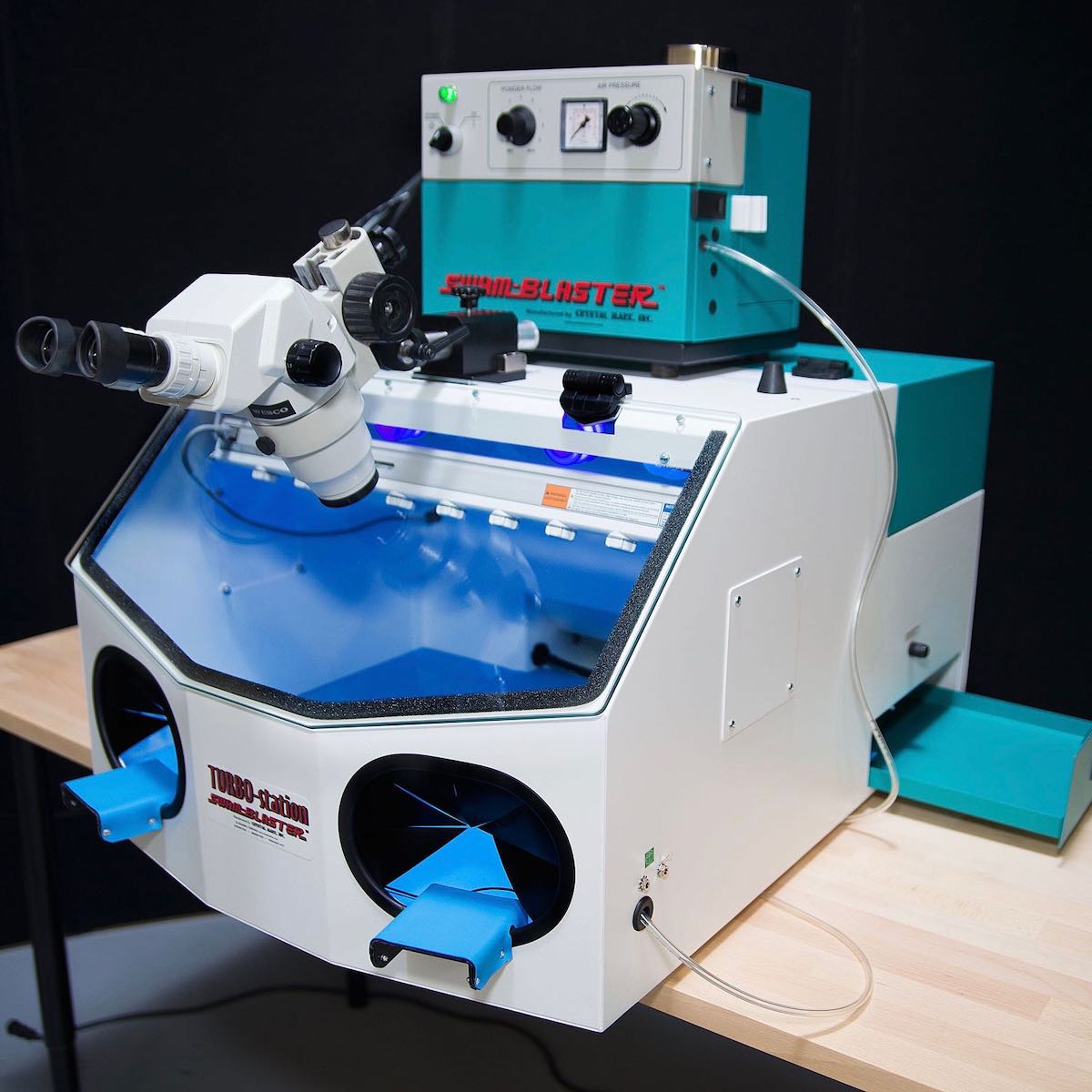

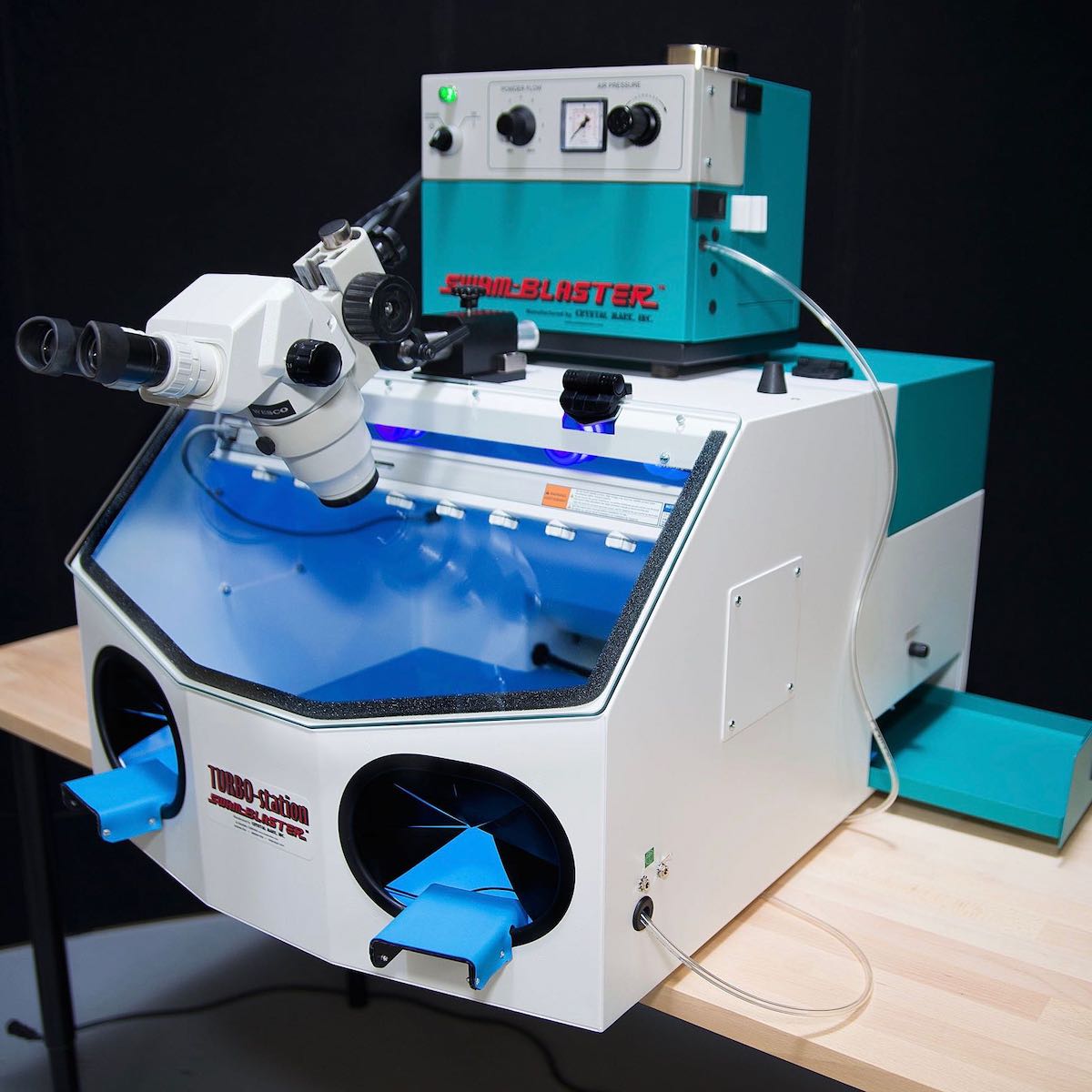

TURBO-Station™ + SWAM Blaster™ (EV, MV Series)
The TURBO-Max™ and TURBO-Station™ utilize the same filter and fan.
TURBO-Max™ Approximate Size: 27”W x 35”D x 19”H
TURBO-Station™Approximate Size: 20”W x 24”D x 16”H
Key Features:
- Illuminated work chamber with a built-in dust collector designed for low volume requirements such as R&D, Pilot Line Production, Laboratory or as a Rework Station.
- Efficient backward inclined impeller can generate 258 scfm of vacuum to evacuate and collect the spent abrasive media.
- Filter is best used with abrasive media 25 microns and larger
- Easily removable drawer for collecting and disposing of spent abrasive powder.
- Tempered glass viewing window.
- Room on top for placing optional micro sandblaster.
- Now available with arm supports.
- Recommended for production time of 20 hours per week or less.
TURBO-Cab™

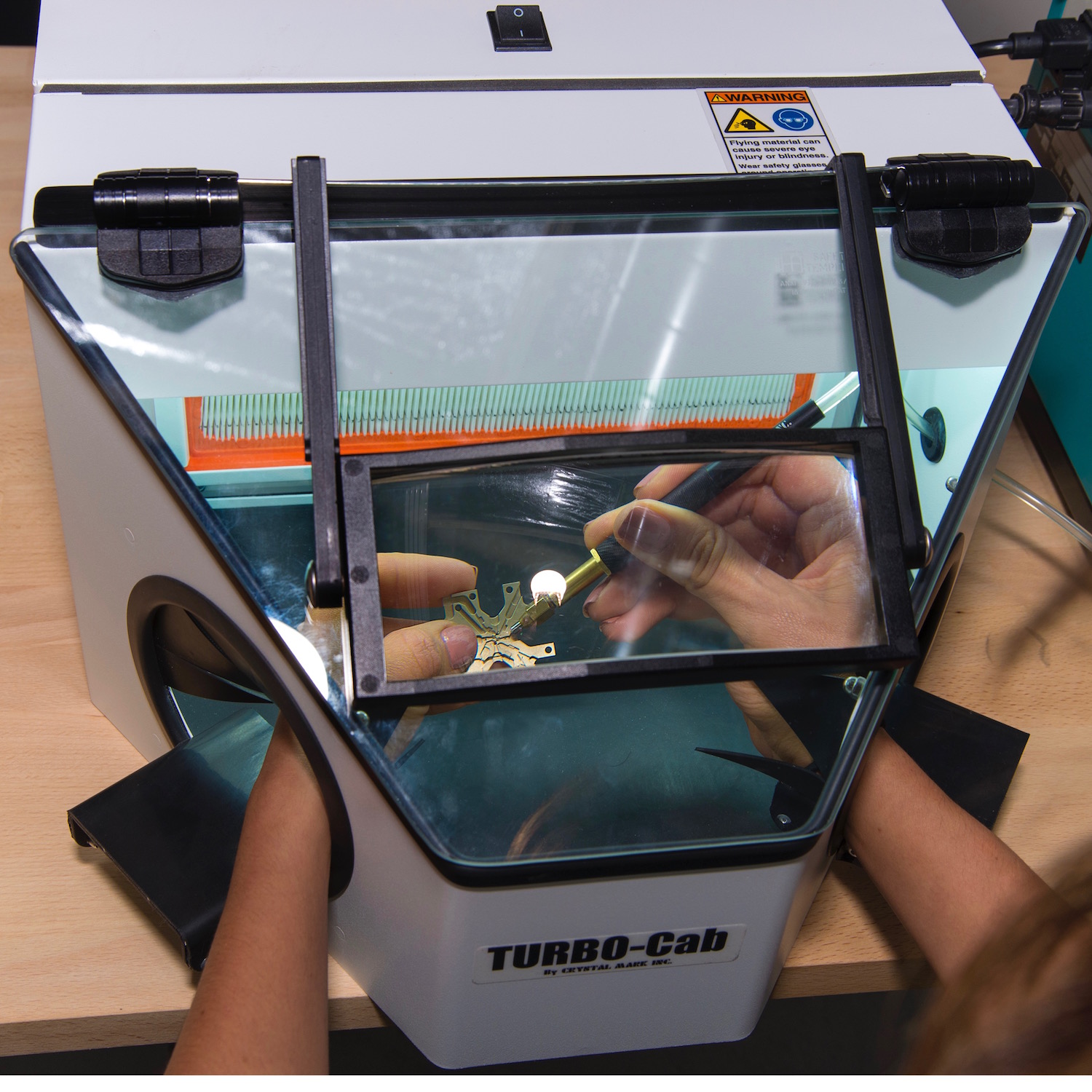

TURBO-Cab™ Work Chamber

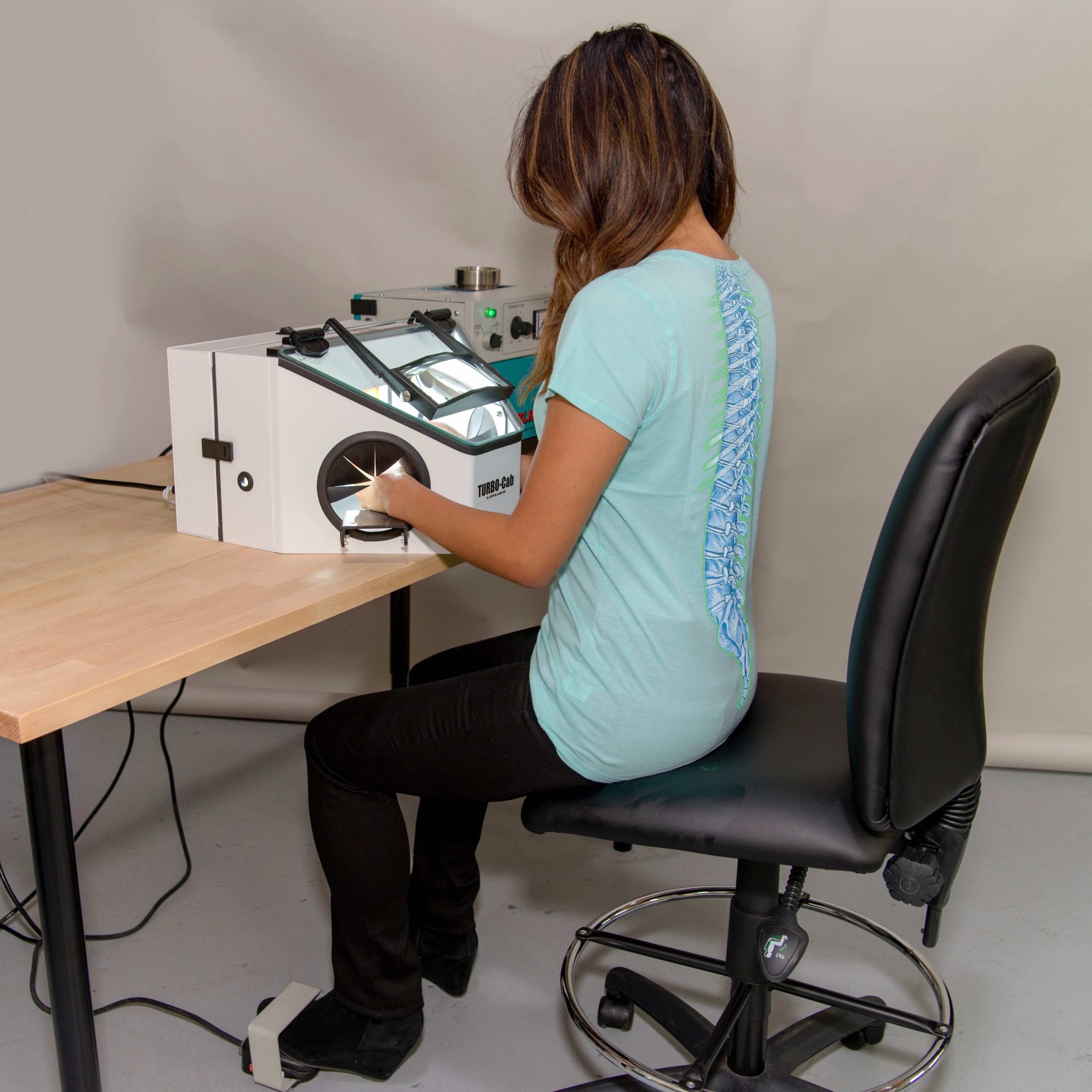

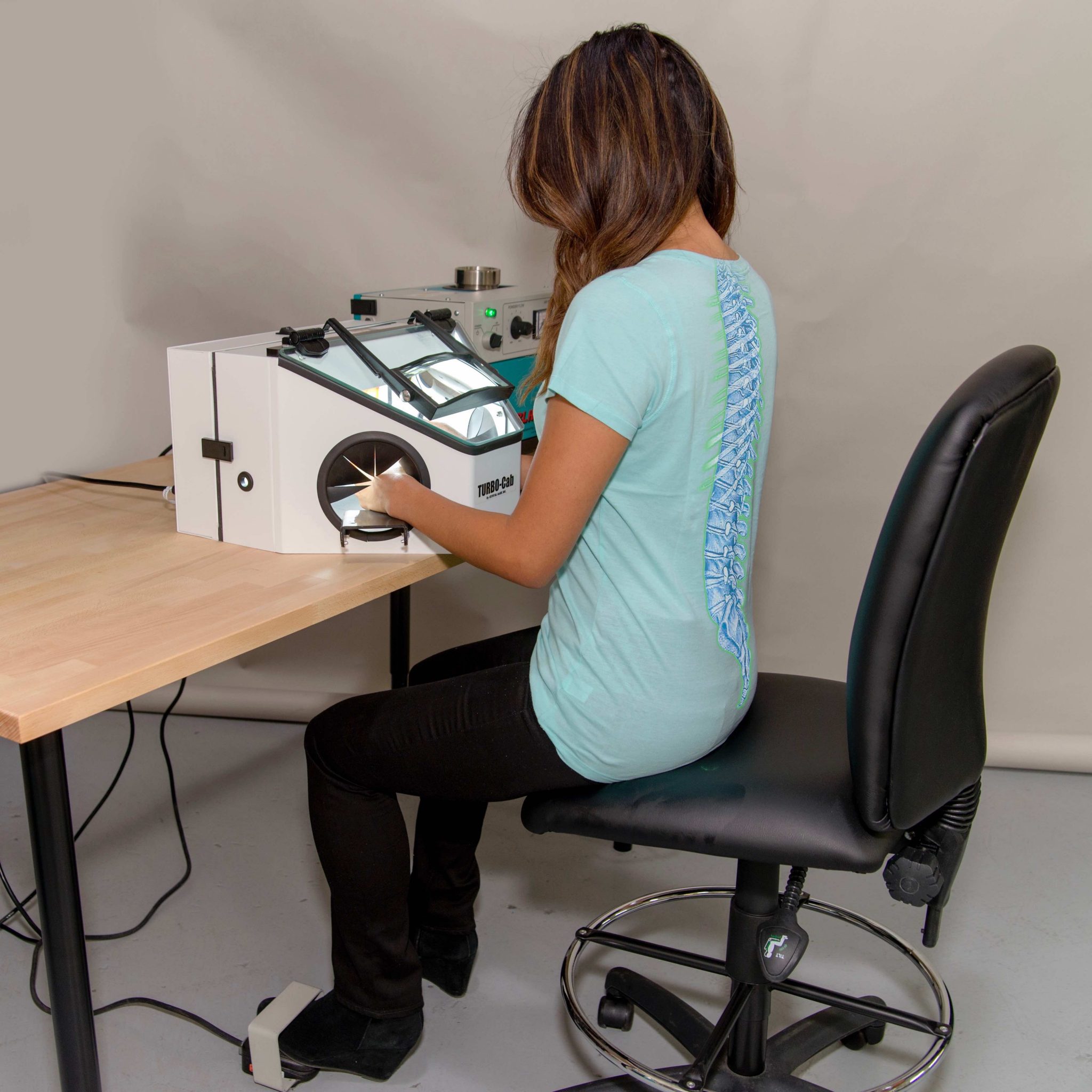

Ergonomic Work Space | TURBO-Cab™

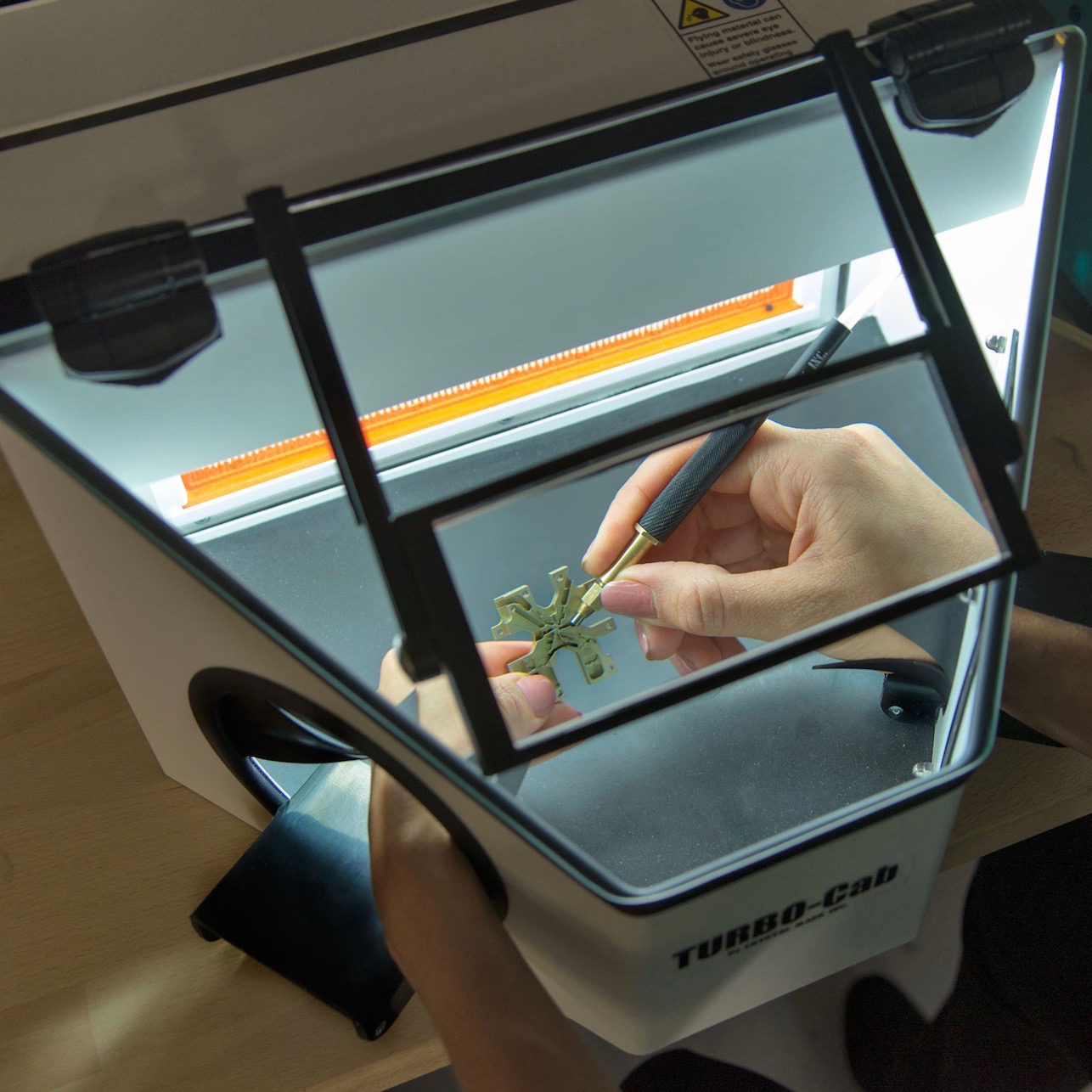

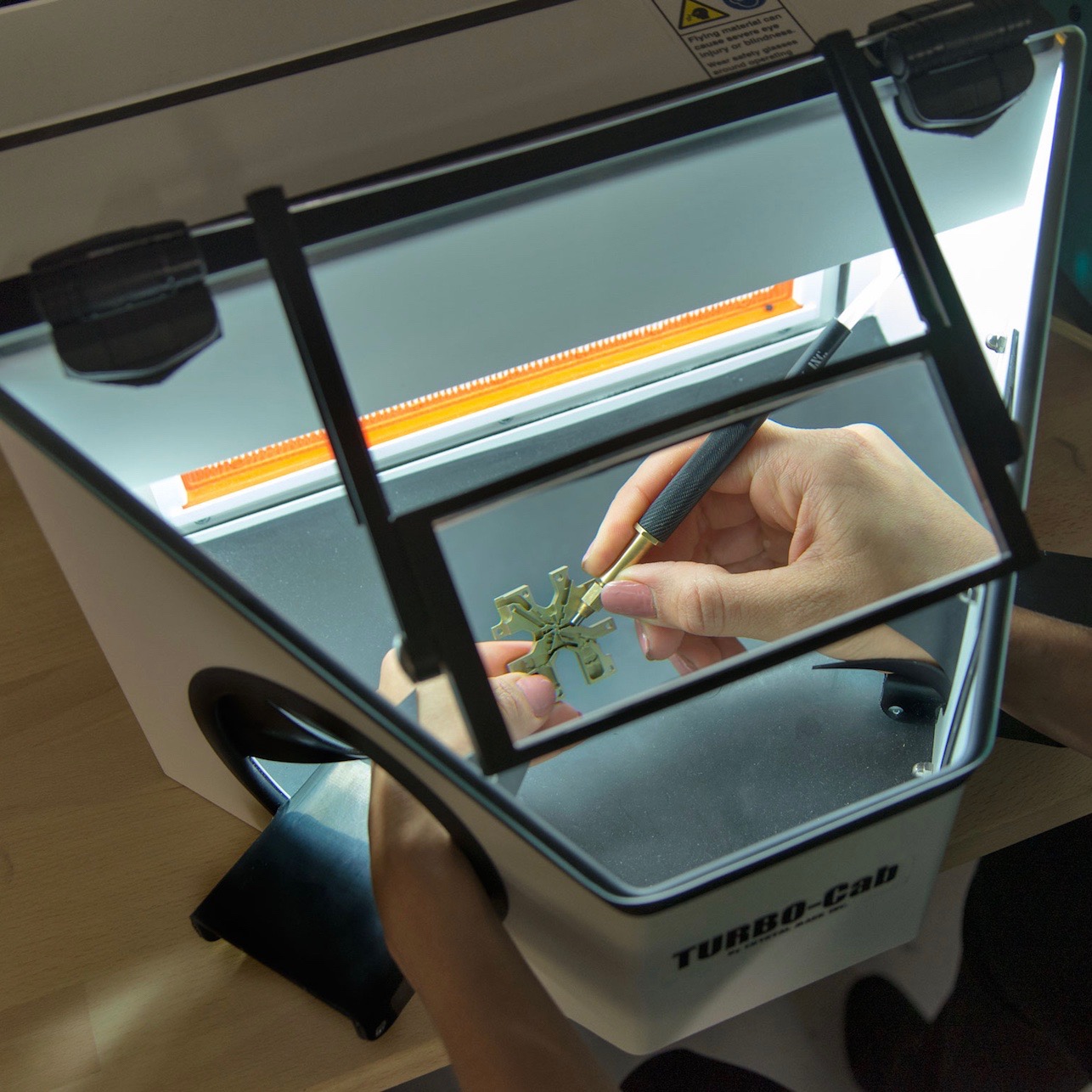

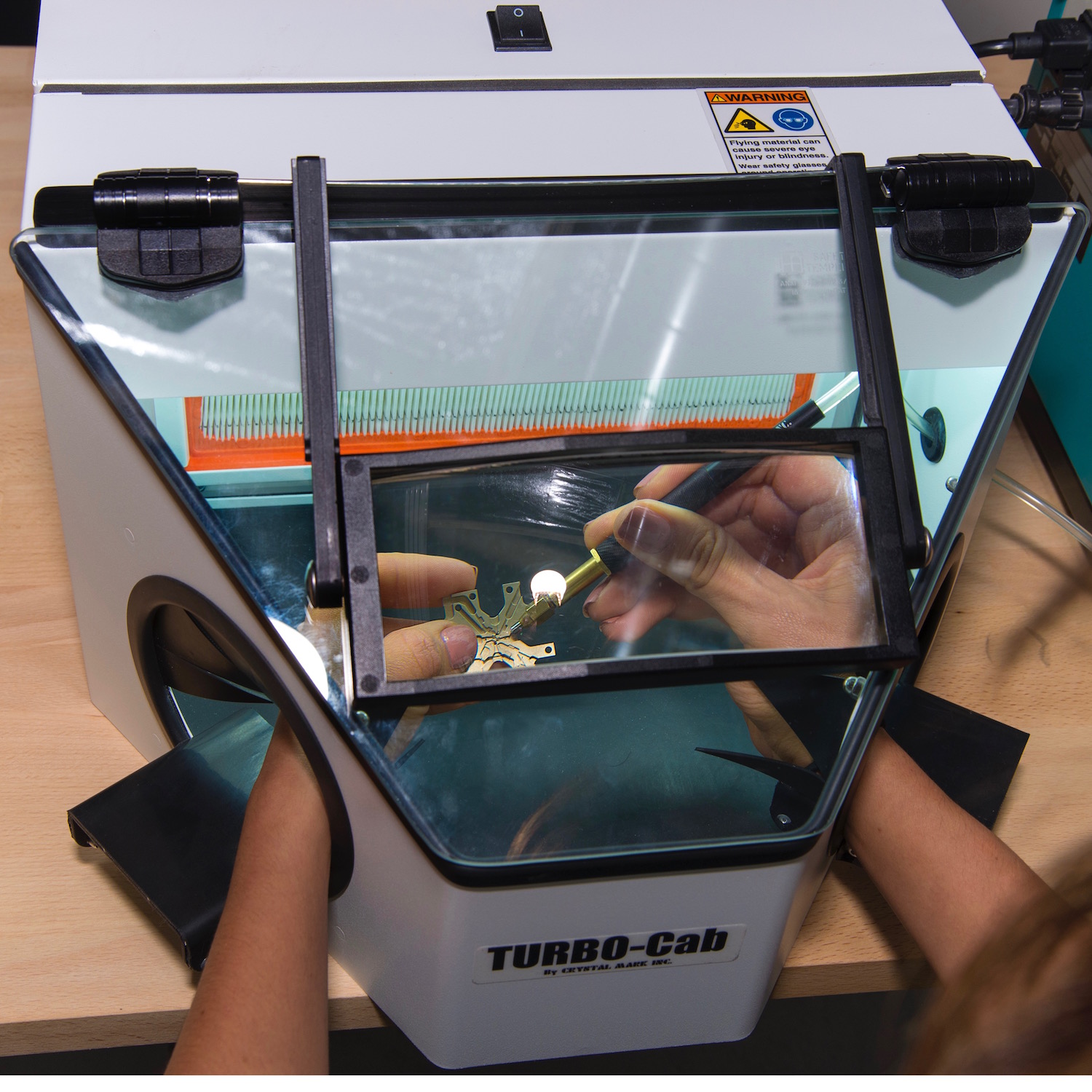

TURBO Cab™ Work Chamber with Magnifying Glass
The TURBO-Cab™ is a small illuminated work chamber with a built-in dust collection. The TURBO-Cab™ is the perfect solution when work items are small and bench or counter space limited.
- Dual fans generate approximately 50 scfm of vacuum to keep spent media or debris inside.
- Cabinet is well lit and features tempered glass to ensure clarity of view and will not frost, unless directly blasted.
- The filter is replaceable and is best for use with abrasive powders measuring 25 microns or larger.
- The viewing window is made of replaceable tempered glass.
- The Work Chamber and the Filter/Power Pack separate for easy clean up and filter replacement.
- Arm supports are available for TURBO-Cab™ work chamber.
TURBO-Cab™ is recommended for production time of 20 hours per week or less.
| Specifications | TURBO-Max™ | TURBO-Station™ | TURBO-Cab™ |
|---|---|---|---|
| Power Requirements | 115 VAC, 60 Hz, 1 amp 230 VAC, 50 Hz, .5 amp |
115 VAC, 60 Hz, 1 amp 230 VAC, 50 Hz, .5 amp |
115 VAC, 60 Hz, 1 amp 230 VAC, 50 Hz, .5 amp |
| Weight (approximate) | 102 pounds | 60 pounds | 25 pounds |
| Approximate Size (Outside Dimensions) | 27”W x 35”D x 19”H | 20”W x 24”D x 16”H | 16”W x 16”D x 10”H |
| Approximate Work Area (Inside Dimensions) | 24”W x 19”D x 18”H | 20”W x 12”D x 14”H | 16”W x 11”D x 10”H |
